Automatic PCB Magazine Loader SMT PCB Unloader With High Quality TYtech UL-460

Short Description:

TYtech SMT Handling Machine Factory, SMT unloader is used to automatically receive reflow soldered circuit boards.

TYtech UL-460 pcb unloader: magazine size: 530*530*570mm, PCB size: 50*50-530-460mm。

Machine size: 2330*980*1250mm, weight: 245kg.


  • Brand: TYtech
  • Model: ULD-460
  • Magazine size(L*W*H): 535*530*570mm
  • PCB size(L*W): 530*460mm
  • Direction: R-L/L-R
  • Adjustable Lifting distance: 10,20,30,and 40mm
  • Transport height: 920±30mm
  • Max store PCB Quantity: 50PCS
  • Lead time: 15 days
  • Product Detail

    Product Tags

    Automatic PCB Magazine Loader SMT PCB Unloader With High Quality TYtech UL-460


    Automatic pcb loader unloader:

    1. Strong and stable design
    2. PLC control system
    3. Touch screen control panel,
    4. The upper and lower pneumatic clamps can ensure the position of the material box is more accurate
    5. Effective design can ensure that the PCB is not damaged
    6. Automatic detection of fault code display function
    7. Compatible with SMEMA interface

    Machine parameter:

    Model No



    PCB Loader

    PCB Unloader

    Machine size(L*W*H)



    Special Aluminum alloy guide rails and rubber belt

    Magazine move method

    Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

    Transport motor

    Transport motor used 15W stable speed motor made in Taiwan

    Clamping structure

    Pneumatic PCB clamping structure

    Magazine size(L*W*H)


    PCB size(L*W)




    Adjustable Lifting distance

    10,20,30,and 40mm

    Transport height




    Programmable Mitsubishi PLC and controller

    PCB load

    PCB Automatic loading to conveyor

    Operation Control system

    Touch Panel controlled interface

    Plate pushing

    Pneumatic Compone(Push plate cylinder with a screw adjustment positionnt)

    Pneumatic Compone(Push plate cylinder with a screw adjustment positionnt)


    220V 50HZ

    Air pressure


    Max store PCB Quantity


    Electronic control

    One set Electronic control box


    Packaging and delivery:

    delivery and package


    Keywords: Automatic pcb unloader, pcb loader unloader, pcb unloader, pcb loader, smt pcb loader, smt unloader, pcb magazine unloader, magazine unloader, smt pcb loader unloader, pcb loader factory, pcb loader machine, smt handling machine, pcb loader unloader for smt assembly line, pcb conveyor, pcb loader price

    TYtech Automation can also provide full smt equipments including: reflow ovenwave soldering machinepick and place machine, pcb solder paste printersmt handling machinesmt peripheral equipmentsmt spare partsAOI/SPI as well.

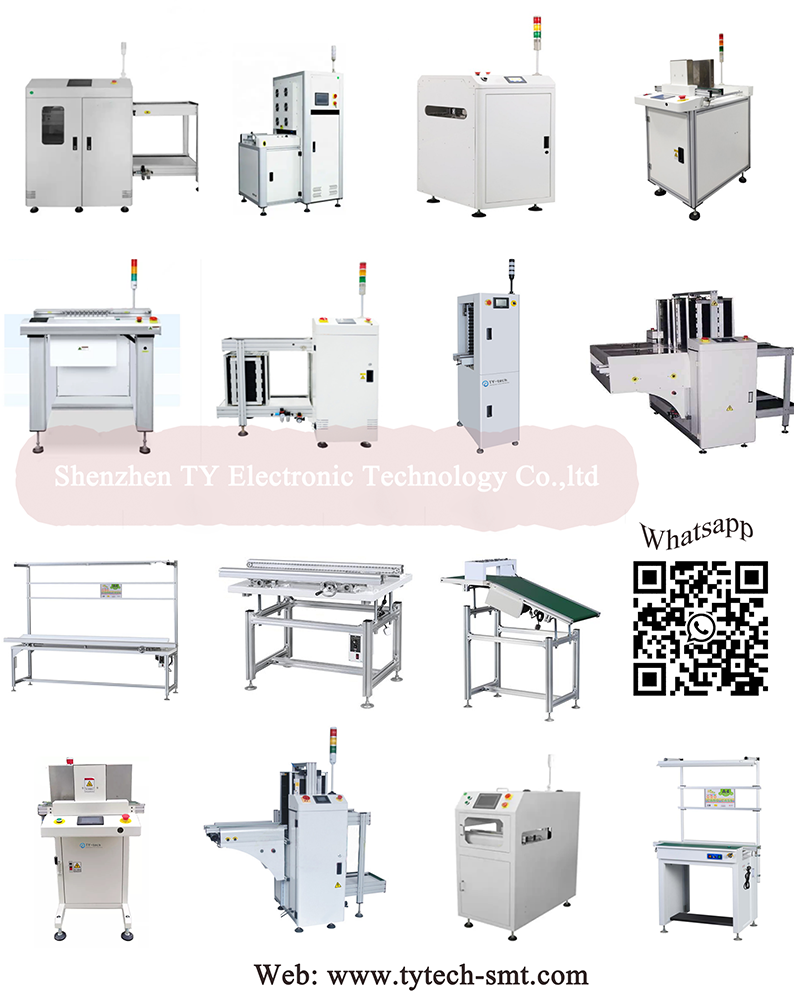

    loader 1000



    Q.What is your MOQ requirement for the machine?

    A. 1 set moq requirement for the machine.

    Q. This is the first i use this kind of machine, is it easy to operate?

    A: There is English manual or guide video that show you how to use machine.

    Q: If the machine has any problem after we receive it, how can we do?

    A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

    Q: Do you provide any warranty for the machine?

    A: Yes 1 year warranty will be provided for the machine.

    Q: How can i place order with you?

    A: You can reach us by email, whatsapp, wechat and confirmt he final price, shipping method and payment term, then we will send you a proforma invoice with our bank details.
