Feature
Feature:
1. European standard aluminum profile + steel plate frame structure, heavier design structure is stronger
2. Frequency conversion lifting device, smooth movement, anti-stuck board
3. Export-oriented, simple width adjustment design, quick and flexible line change
4. The pushing mechanism can be adjusted flexibly
5. Light touch film panel
6. 4-point positioning of material box
7. CE highest safety level design
8. High throughput, short material conversion time

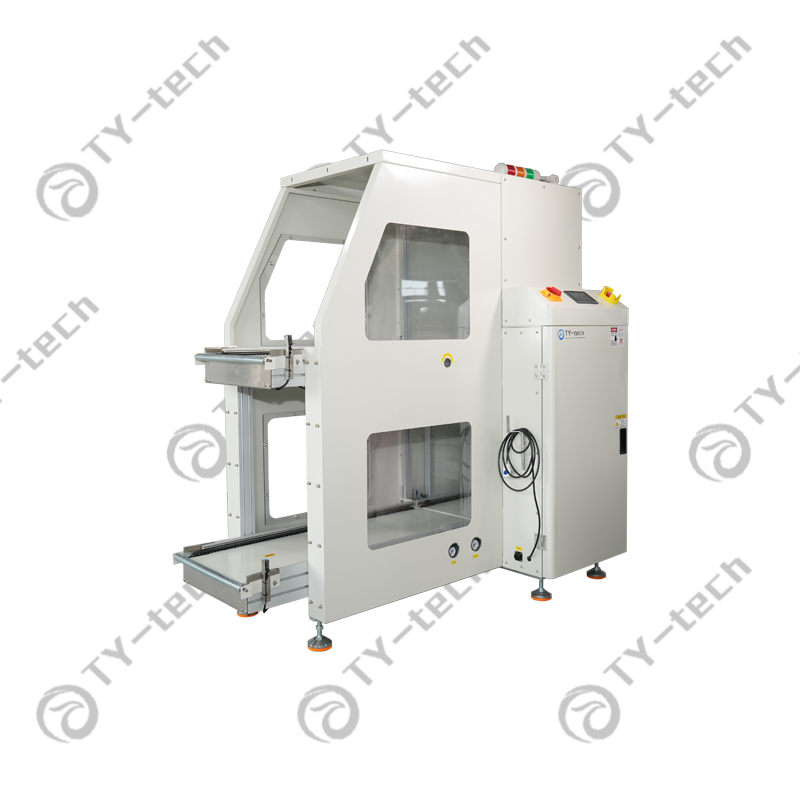

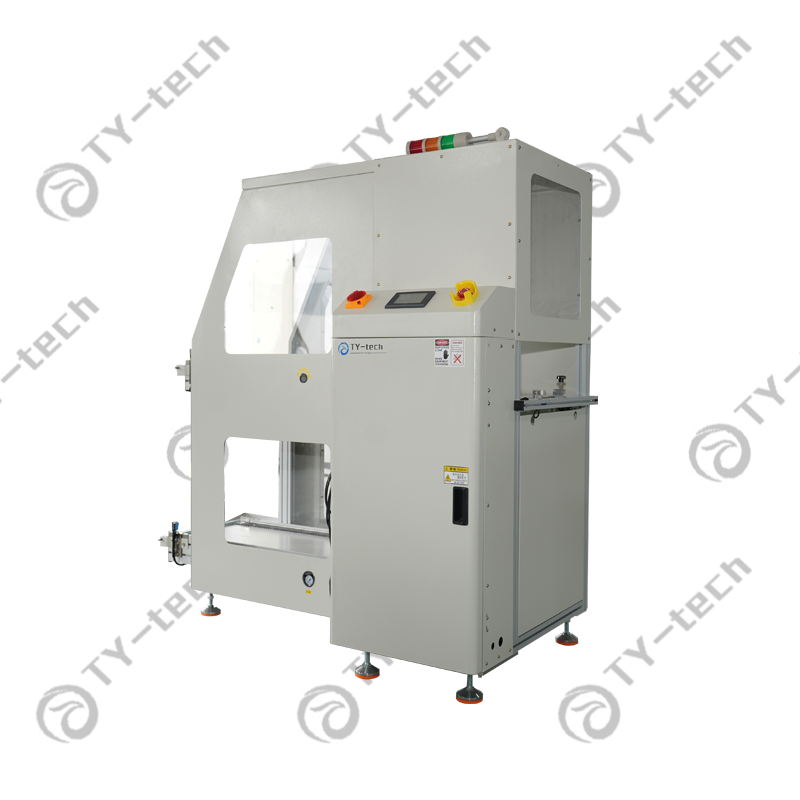

Detail Image
Specifications
| Machine configuration | LD-250 | LD-330 | LD-390 | LD-460 |
| Transmission height | 910 mm ± 30 mm | 910 mm ± 30 mm | 910 mm ± 30 mm | 910 mm ± 30 mm |
| Conveyor belt | 3mm flat belt | 3mm flat belt | 3mm flat belt | 3mm flat belt |
| Communication interface | SMEMA | SMEMA | SMEMA | SMEMA |
| Transmission direction | L to R/R to L | L to R/R to L | L to R/R to L | L to R/R to L |
| Fixed rail | Front of the machine | Front of the machine | Front of the machine | Front of the machine |
| Transmission structure | 1-stage | 1-stage | 1-stage | 1-stage |
| Width adjustment method | manual adjustment | manual adjustment | manual adjustment | manual adjustment |
| Substrate size | ||||
| Material frame size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Number of material frames | Up1, down 2 | Up1, down 2 | Up1, down 2 | Up1, down 2 |
| Substrate size (L*W) | 70*70mm~330*250mm | 70*70mm~445*330mm | 70*70mm~530*390mm | 70*70mm~530*460mm |
| Substrate component height | ±30mm | ±30mm | ±30mm | ±30mm |
| Substrate weight | ≤1.5kg | ≤1.5kg | ≤1.5kg | ≤1.5kg |
| Installation requirements | ||||
| Power Supply | 220V 50/60Hz ±10% | 220V 50/60Hz ±10% | 220V 50/60Hz ±10% | 220V 50/60Hz ±10% |
| power supply system | L1+N+PE | L1+N+PE | L1+N+PE | L1+N+PE |
| power | 0.5KW | 0.5KW | 0.5KW | 0.5KW |
| Gas source | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| Gas consumption | ＜20L/min | ＜20L/min | ＜20L/min | ＜20L/min |
| Power plug type | International standard (optional) | |||
| Machine description | ||||
| Machine dimension | 1375*766*1630mm | 1820*845*1630mm | 1895*900*1630mm | 1895*970*1630mm |
| Machine weight | ≤180kg | ≤220kg | ≤260kg | ≤280kg |
| Fixed point to front size (X) | 375mm | 375mm | 375mm | 375mm |
| Noise level | < 75 dB | < 75 dB | < 75 dB | < 75 dB |
| Optional items | ||||
| A-Single machine automatic width adjustment, B-FUJI Nexim, Panasonic ILNB system docking, C-CE safety interlock, D-AGV docking, E-box placement quantity, F-other | ||||
| Product Description | ||||
| The device is used at the front end of the production line to automatically load the PCB.
Through integrated push plate device and lifting vertical transportation, and then use the push plate mechanism to send to the next process. The machine is characterized by short cycle time, saving manpower movement to achieve the best intelligent production effect, improving quality and production efficiency. Surface electrostatic powder coating, the frame uses the perfect combination of European standard profiles and sheet metal to ensure process stability and excellent durability. |
||||
