Feature
1. H-shaped structure with a dual-pillar design to ensure optimal stability and robustness under load,meeting high-precision pressing requirements effectively;
2. A large-size worktable and an optional rear extension worktable, fulfilling the requirements of pressing and safety for large-size PCBA, such as telecommunication type products;
3. Multiple logic systems control to effectively manage personalized pressing needs including press force, displacement, angle, slope, sampling, speed, and delay time;
4. Database management allows creation of databases for each connector, tooling, PCBA, speed template, and envelope curve, enabling flexible configurations as needed;
5. Real-time display, storage, envelope generation, and curve analysis software functions for pressure curves;
6. Equipment platform with PCB movement supported by air flotation to reduce work intensity of operators;
7. Equipped with light curtain safety device, dual-hand photoelectric safety switch, and laser-assisted fixture positioning;
8. Supports Chinese/English version software with MES data interface for data import;
9. Supports manual teaching function and offline programming. Features of quick export, import, backup,delete, copy, and barcode positioning for programs;
10. Supports SPC statistical management, log management, account authority control, and production data traceability management functionalities.

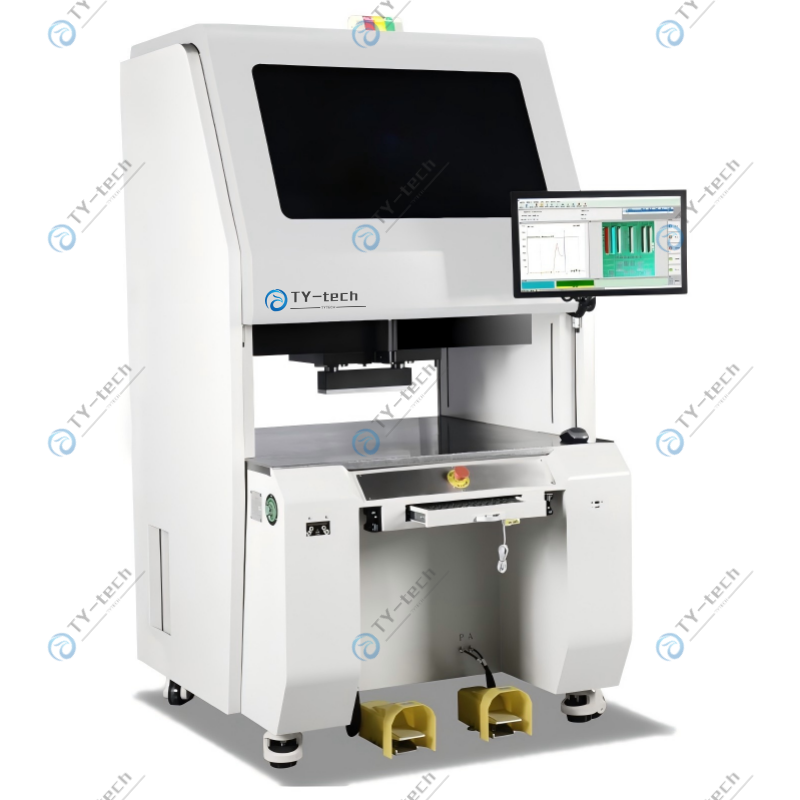

Detail Image
Specifications
|
Model Number
|
TY-PT1000
|
TY-PT1000L
|
|
Maxforce
|
60 KN
|
120 KN
|
|
Stroke
|
100mm
|
|
|
Control method
|
Industial PC+Servo motor
|
|
|
Speed
|
0.01-40mm/s
|
|
|
Positional accuracy
|
±0.01 mm
|
|
|
Pressureforce accuracy
|
Fulfill: 1% of full scale, ±5% of target value,
and CPK ≥ 1.67
|
|
|
Control logic
|
Press force, displacement, speed, sampling, angle, delay time, etc.
|
|
|
Indenter size
|
270*60 mm (customizable)
|
|
|
Worktable size
|
1000*940 mm
|
|
|
Air floatation support
|
Yes
|
|
|
Safetyprotec tiondevice
|
Light curtain+Emergency stop button
|
|
|
Fixtureposi tioning
|
Laser light
|
|
|
Power supply
|
AC 220V 1 KW
|
AC 380V 4.5KW
|
|
Machine dimension
|
1100*1050*1900 mm
|
1100*1050*2200 mm
|
