Feature
1. Laser head: imported laser with high stability and long life
2. Intelligent system: intelligent anti-error code/duplicate code, standard MES interface, MES customized development
3. High-precision positioning system: ±0.02mm repeatable positioning accuracy
4. Purification system (optional): automated high-performance essence system
5. Intelligent camera system: intelligent CCD visual positioning, intelligent recognition of 2D code
6. Control system: developed based on the German-Chinese high-precision cutting system
7. Applicable PCB size (450mm*300mm-600mm*600mm)
8. Smoke purifier, laser Z axis, bottom code reading, simultaneous printing and reading (side camera) optional
9. Single and double tracks optional
Detail Image
Specifications
|

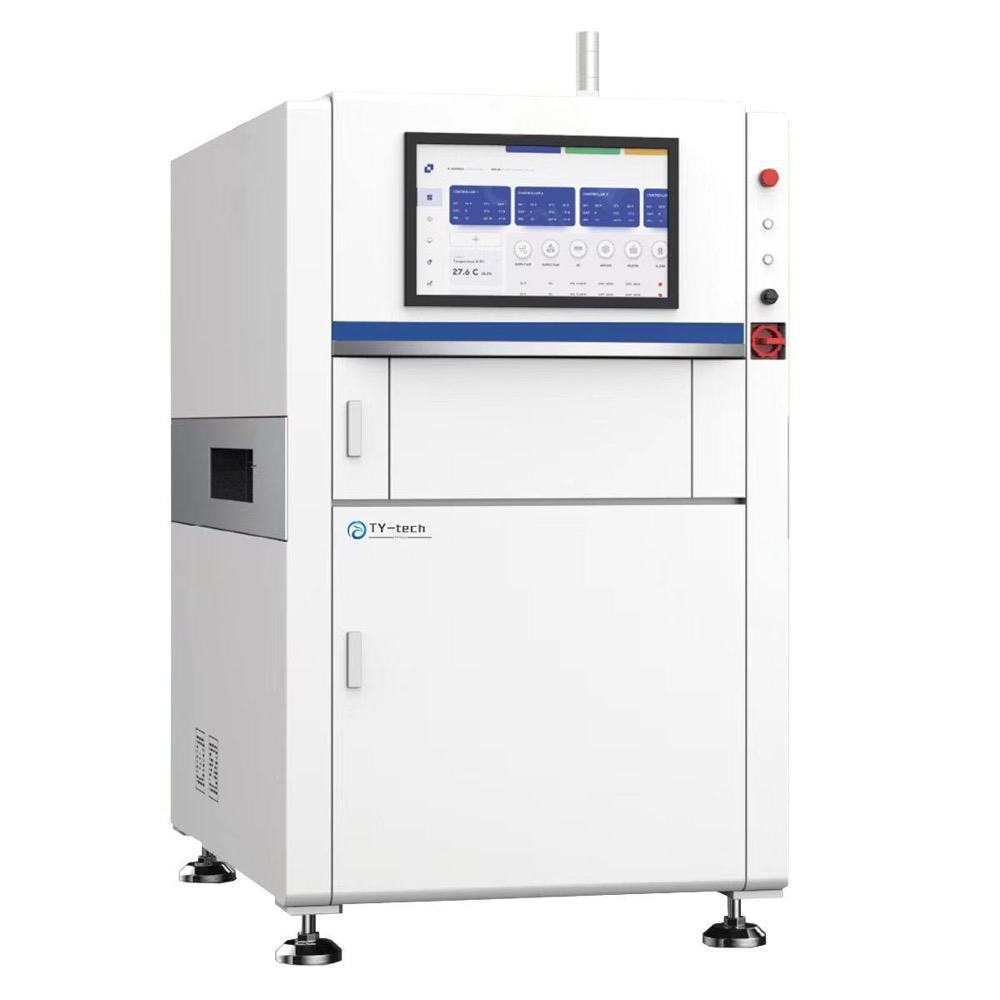

Model |
TY-X45UF |
Machine Dimensions |
1000*1520*1570 mm |
|
Wavelength(um) |
355 nm |
Laser Brand |
AOC |
|
Laser Spot Dia(um) |
20 um |
Laser Level |
Class4 |
|
Laser Type |
UV |
Alignment Type |
CCD+MARK |
|
Laser Power(W) |
Power Stability@50KHz＜3% |
2D or 3D Laser |
2D Laser |
|
Laser Scan Area(mm) |
150mm*150mm |
Repeatability (mm) |
±0.02 mm |
|
PCB Size (L*W)(mm) |
50mm*50mm~450mm*450mm |
Cooling Type |
Water Cooling |
|
Minimum Code Size(mm) |
0.5X0.5mm |
PCB Thickness (mm) |
0.5-7 mm |
|
Up and Down Marking |
Yes,with triple conveyor system |
Barcode Reader |
CCD on-line detection |
|
Movement Type |
Laser shift |
Compressed Air |
≥0.5MPa |
|
Conveyor Height(mm) |
900±50 mm |
Temperature and Humidity |
5~40°，30~80Rh |
|
Marking Angles |
0-360° |
Weight(Kg) |
920 KG |
|
Power Supply |
AC220V 50/60Hz |
Power Consumption |
2KW |
|
Marking Characters Type |
English capitals,English small letters、digits、katakana、hiragana、chinese charaters、characters |
||
|
1D Code |
CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC |
||
|
2D Code |
QR code、Micro QR code 、iQR code、DM code 、GS1 DM code、PDF417. |
||
|
Image Data Type |
VEC、DXF、BMP、JPG、JPEG、JPE、JFIF、HGL、PGL、PLT |
||
|
Dust Collection |
Auto dust collection system |
||
|
GUI |
Chinese or English, easy to operate，three levels user management. |
||
|
Fool-proof Design |
PCB wrong directon/PCB upside down/wrong materials |
||
|
Bad Mark Function |
Recognize bad marks,skip marking when recognizing fails |
||
|
MES |
Can be connected to SHOPFLOW, MES, IMS, PMS and other management systems |
||
