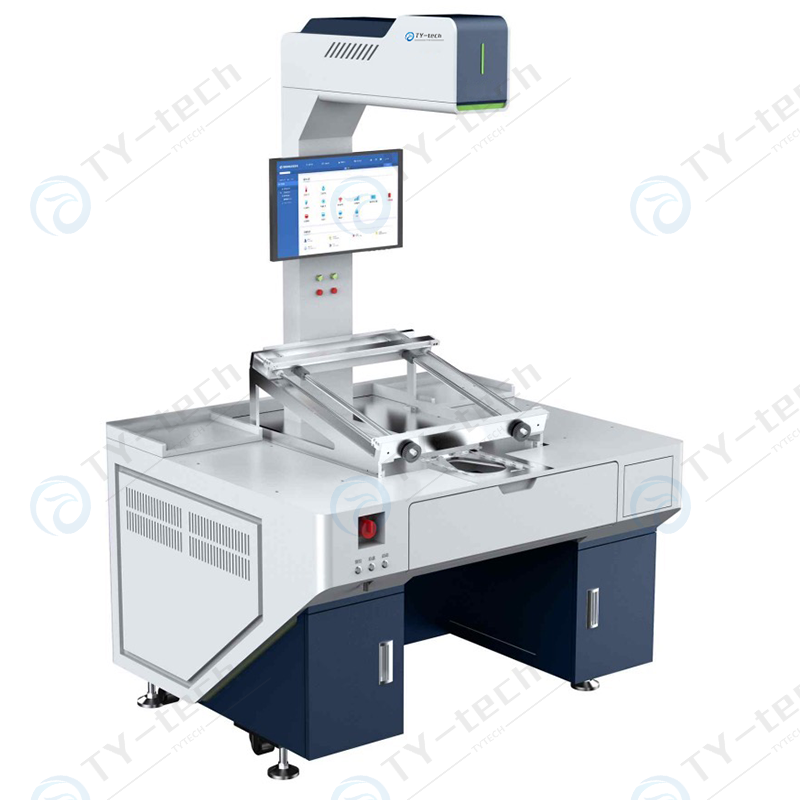

Offline Smart THT Insertion Machine TY-Z100

Definition of plug-in machine
It is a mechanical device that automatically and accurately inserts some perforated electronic components with standard packaging into the through holes of printed circuit boards. It is referred to as "automatic plug-in machine". Generally, there are two types of automatic plug-in machines: vertical plug-in machines and horizontal plug-in machines according to the packaging method of electronic parts. With the diversified evolution of electronic parts and the development of surface mount technology (SMT) and robotic arms, in addition to traditional automatic plug-in machines, there are now more "special-shaped parts plug-in machines" with wider visual recognition capabilities and "robotic arms" with multi-action functions.

The special-shaped parts plug-in machine reduces or replaces the dependence on manual labor in an automated way by automatically feeding/picking/identifying parts. The high-precision and high-efficiency operation mode has also solved the quality problems in the production process of the electronic manufacturing industry to a certain extent, greatly improving production efficiency; it is also called a special-shaped plug-in machine on the market.

The plug-in machine is a machine that automatically installs the taped electronic components on the printed circuit board according to the program. The traditional electronic assembly industry mainly relies on workers to insert electronic components on the circuit board. Since the machines began to be mass-produced, the slow speed and poor craftsmanship of manual plug-in have been exposed. Using the plug-in machine to automatically install electronic components on the circuit board can save labor costs and improve the level of plug-in technology.

Feature:

1. Fast programming and accurate indication of plugin position.

2. Integrated LCR testing, with plugins and detection tasks in place in one step.

3. Modular design concept, large number of material boxes, which can be disassembled or added according to customer needs.

4. Accurate indication, accurate discharge, anti insertion, anti material error, and time-saving.
