Feature
1. An automatic press-fit machine that presses precision components such as connectors, IGBTs, SPF cages, terminals, eyelets, and automotive、electronic products onto PCBs;
2. Robust and durable H-type structure, driven by X/Y/Z/R servo motors with precision ball screw transmission;
3. Inline mode machine, supporting left-to-right or right-to-left working configurations;
4. Multi-logic control system, such as press force, displacement, angle, slope, sampling, speed, and delay time;
5. Indiviual database system for each connector, tooling, PCBA, speed template, and envelope curve, allowing for flexible configurations as needed;
6. Real-time display, auto-save, envelope, and analysis software functions for pressure curves;
7. Database management, SPC management, log management, traceability module, and multi-level permission management;
8. A high-precision press force sensing system, meeting specifications of ±1% (full scale), 5% (target value), pressure resolution: 1N, CPK > 1.67;
9. Equipped with automatic tooling change function and more than 11 types of tooling libraries, capable of automatically changing molds according to programmed settings for different types of connectors. It supports both single tooling and integrated tooling functions simultaneously;
10. Visual inspection functions: barcode scanning, Mark point scanning and compensation, tooling verification scanning, and laser height detection.

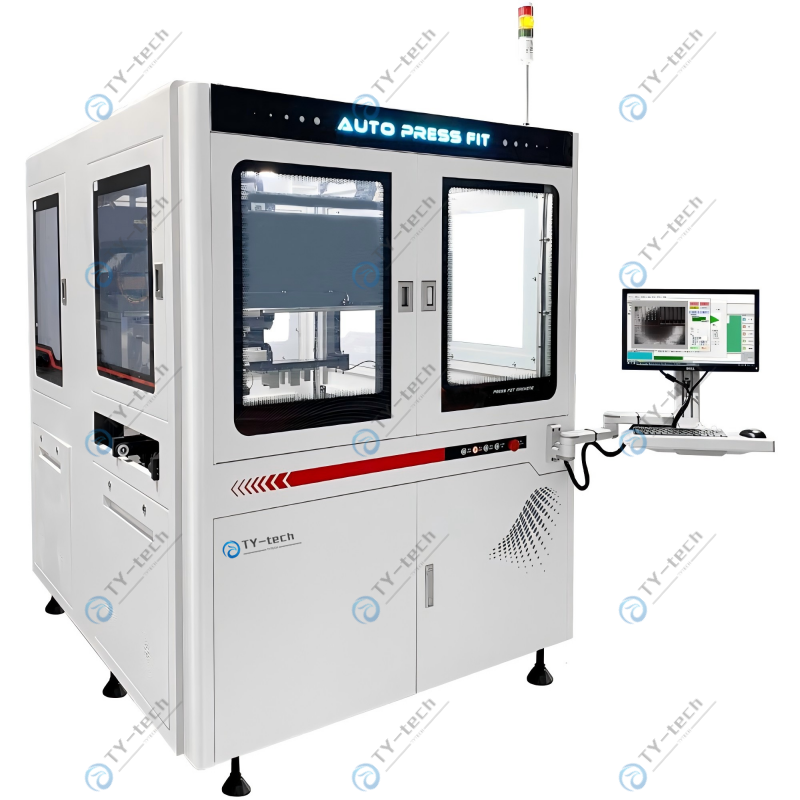

Detail Image
Specifications
|
Model Number
|
TY-APT600 |
|
Max. press force
|
50 KN
|
| Pressing stroke | 120 mm |
|
Control method
|
Industrial PC+Servo motor
|
|
Press speed
|
0.05-50 mm/s
|
| Positional accuracy |
±0.01 mm
|
| Press force accuracy |
Fulfill: 1% of full scale, ±5% of target value, and CPK ≥ 1.67
|
| Control logic |
Press force, displacement,
speed, sampling,
angle, delay time, etc.
|
| Pressing block size |
180*160 mm / 160*60 mm
|
| Worktable siz |
600*600mm（customizable）
|
|
Vision function
|
Barcode scanning, Mark point scanning, tooling
verification scanning, and laser height detection
|
|
Pressing block rotation
|
Support
|
|
Positioning method
|
CCD visual coordinates positioning
|
|
Power supply
|
220VAC 4.5KW
|
|
Machine dimension
|
2050*1550*1900 mm
|
