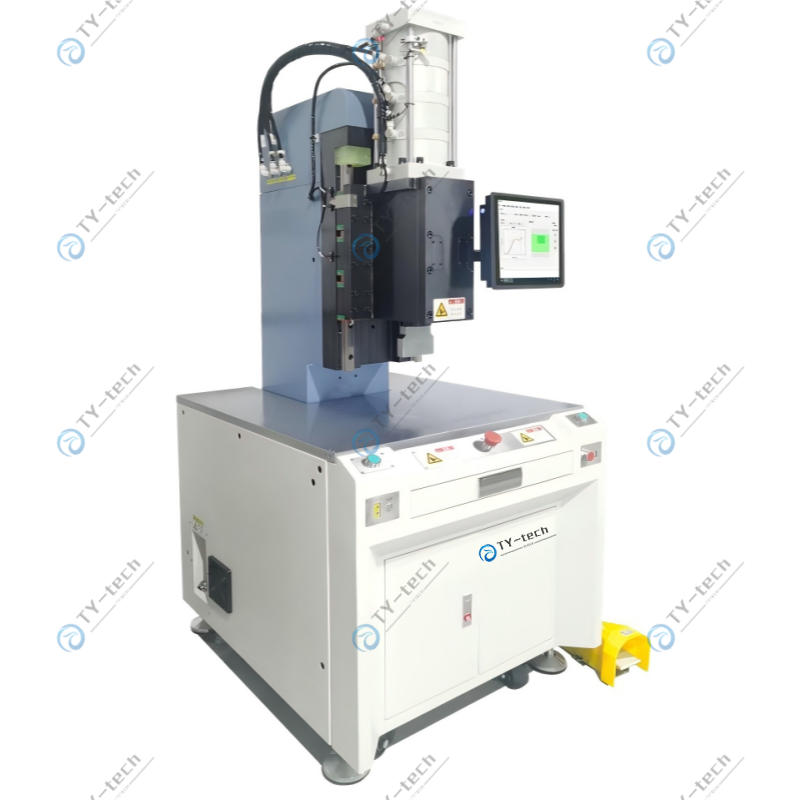

Semi-automatic PCB Component Press-fit Machine TY-PT860

1. All-in-one PC + PLC control, flexible programming, unlimited program capacity;

2. Servo motor controls the depth of press-fit, Z-axis movement accuracy ±0.02mm, maximum movement range 150mm;

3. Four-stage boosting cylinder, maximum press force 25000N, maximum press stroke 15mm;

4. Closed-loop control of pressure stroke, alarm for pressure stroke exceeding limits;

5. Real-time pressure-time curve, alarm record, automatic saving, convenient for later tracing;

6. Controllable pressure, speed, stroke, delay time;

7. Three-level operation authorization design, convenient for operation management;

8. Machine supports multi-stage operation control, meeting precise press-fit operations for different products;

9. Wide adaptation range for PCB, special customization available as needed;

10. Automatic switching of press-fit programs for multiple connectors on the entire board, with color display of press-fit positions, easy operation.
