Feature
1. Servo motor drive: Real time monitoring of pressure, distance, and speed, enables precise control of the position and speed of the press head, achieving high-precision and controllable press-fit, effectively avoiding over-pressure and under-pressure.
2. C-type structure: Robust structure, minimal deformation, throat depth: 300mm suitable for the majority of PCBs.
3. Equipped with pressure monitoring sofware: Full-process closed loop control, SPC data ensuring uality and traceability of each press-fit, provides comprehensive data management for the press-fit process.
4. PC control: Unlimited parameter storage. Achieves precision control of press-fit accuracy through parameters. Features SPC management, log management, user permission management, and program management.
5. Pressure curve slope control: Monitors the rate of change of pressure with distance, ensuring tight fit between connectors and PCB surface (Option).
6. Automatic saving/analysis software package for pressure curves (Option).
7. Manual teaching function / PCB movement with air-floating support.
8. Grating induction safety protection device / laser-assisted fixture positioning.

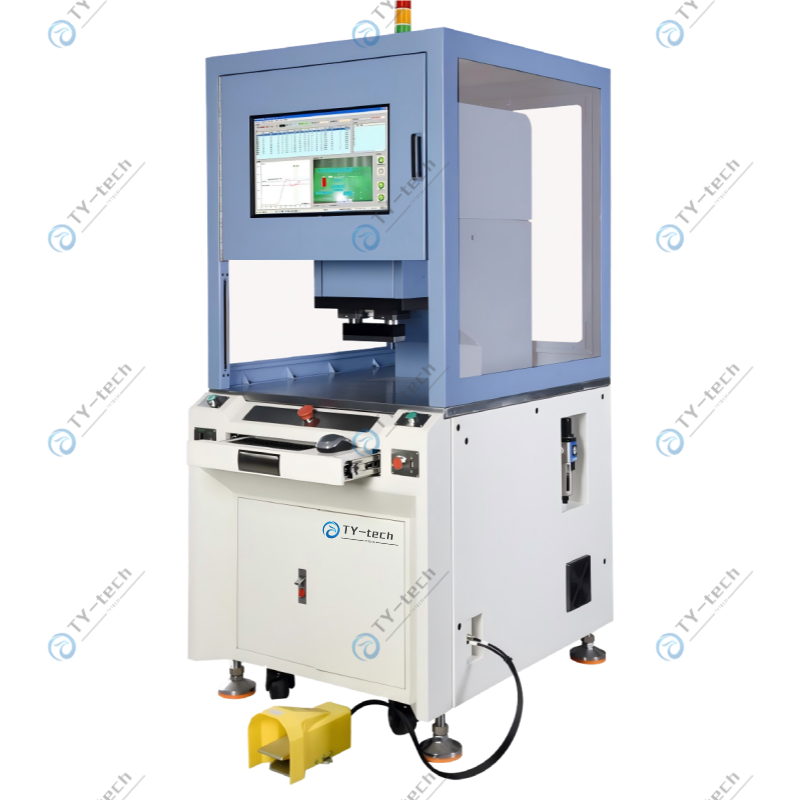

Detail Image
Specifications
|
Model Number
|
TY-PT550
|
|
Maxforce
|
25 KN |
| Stroke |
100 mm
|
|
Control method
|
Industrial PC+Servo motor
|
|
Speed
|
0.05-30 mm/s
|
|
Positional accuracy
|
±0.01 mm
|
|
Pressureforce accuracy
|
Fulfill: 1% of full scale, ±5% of target value,and CPK ≥ 1.67
|
|
Control logic
|
Press force, displacement, speed,sampling,
angle, delay time, etc.
|
|
Indenter size
|
150 * 50 mm
|
|
Worktable size
|
550*750 mm
|
|
Throat depth
|
300 mm
|
|
Air floatation support
|
Yes
|
|
Safetyprotec tiondevice
|
Light curtain
|
|
Positioning method
|
Laser light
|
|
Power supply
|
AC220V, 1000W
|
|
Machine dimension
|
1000*750*1600 mm
|
