Feature
1.Three-axis motion (X/Y/Z) enables precise selective dispensing of various circuit boards, avoiding non-dispensing zones like connectors.
2.Accurately implement selective dispensing in designated areas of various circuit boards.
3.Enables multi-path dispensing, capable of handling high-density complex circuit board applications.
4.It ensures uniform dispensing of adhesive to device edges while eliminating shadowing effects.
5.The system has a precision of ±0.02 millimeters.
6.Equipped with high-speed, highly reliable, and stable transmission and control systems.
7.The standard equipment is equipped with two TY-H10 reabsorption dispensing valves, featuring adjustable spacing to enable high-density dispensing for complex circuit boards.
8.Programming method: The software supports manual data input and teaching programming.
9.Full-line integration: The device features SMEMA interfaces compliant with SMT industry standards, enabling seamless signal synchronization with other equipment.

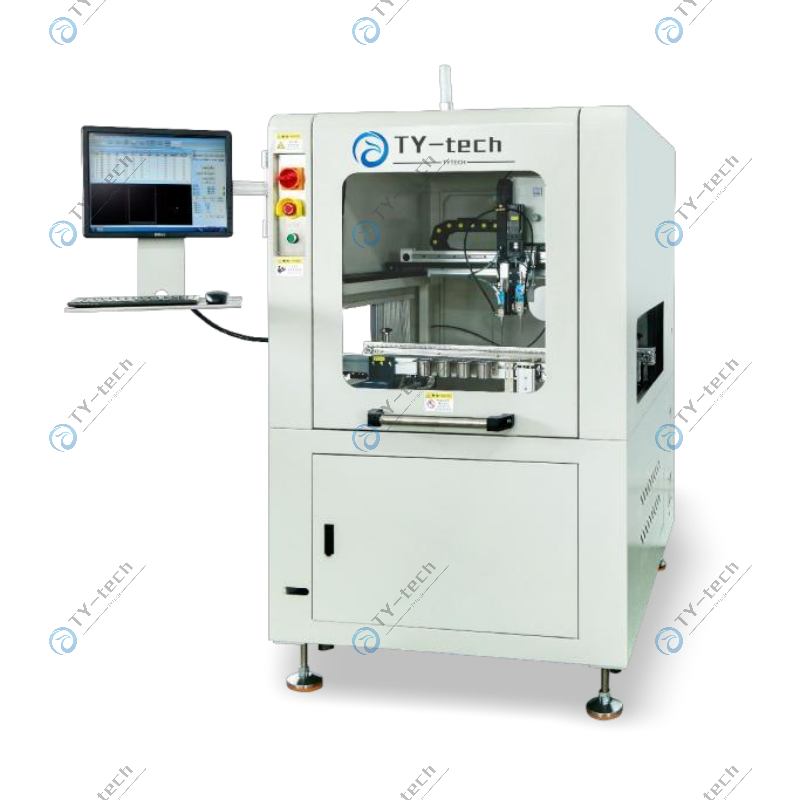

Detail Image
Specifications
|
type
|
specifications
|
TY-Vision8
|
|
plant
parameter
|
dotting stroke |
X=450mm
|
|
Y=450mm
|
||
|
Z=100mm
|
||
|
Maximum height of
component
|
100mm above and 100mm below the chain
|
|
|
PCB edge space
|
≥3mm
|
|
| X.Y axis drive mode |
Servo motor + precision screw module
|
|
| Maximum operating speed
of X and Y axes
|
1000mm/s | |
| Maximum X-axis speed |
300mm/s
|
|
|
X.Y.Z Positioning accuracy
|
±0.02mm
|
|
|
X.Y.Z Repetition accuracy
|
±0.02mm
|
|
| delivery
system
|
Career direction |
L→R\R→L
|
|
delivery head
|
910±20mm
|
|
|
transporting velocity
|
2—13m/min
|
|
| transmission motor |
Dual stepper motor, speed value
displayed on
the computer interface
|
|
|
orbit amplitude modulation
|
intelligent electric amplitude modulation
|
|
|
AM width
|
50—450mm
|
|
|
spray
configuration
system
|
valve arrangement
|
|
| immersion and emesis |
You can set the number and duration of
automatic soaking and saliva drainage
|
|
|
nebulization pressure
adjustment
|
Precision pressure regulating valve + digital display meter
|
|
| waste liquor treatment |
Configure a waste liquid recycling device.
|
|
|
spray testing
|
LED, UV Fluorescence Detection Lamp
|
|
|
feed system
|
1 set of 2.6L glue supply barrels
|
|
|
Equipment and
site requirements
|
outline dimension
|
L1060mm*W1300mm*H1700mm
|
|
weight of equipment
|
Approx.650kg
|
|
| equipment pressure | ≥0.4Mpa | |
| Exhaust air volume requirements |
900m³/h, exhaust port diameter
φ150mm*1
|
|
| device power supply |
AC220V 50—60Hz
|
|
| Total power consumption of the device |
1.8kW
|
|
| control and
operating system
|
control method |
Industrial computer + motion control card
|
| Coating Software |
Zhimai (TY) Control Software +
Windows10 System Control
|
|
| Programming Method |
Tutorial/Keyboard and Mouse Set, Manual Parameter Editing
|
|
| communication port |
Standard SMEMA interface
|
|
| MES Integration (Optional) |
The device can integrate with the customer's MES system to enable Industry 4.0 smart manufacturing.
|
