Totally Conformal Coating Line for PCB Automated Protection & Curing

Short Description:

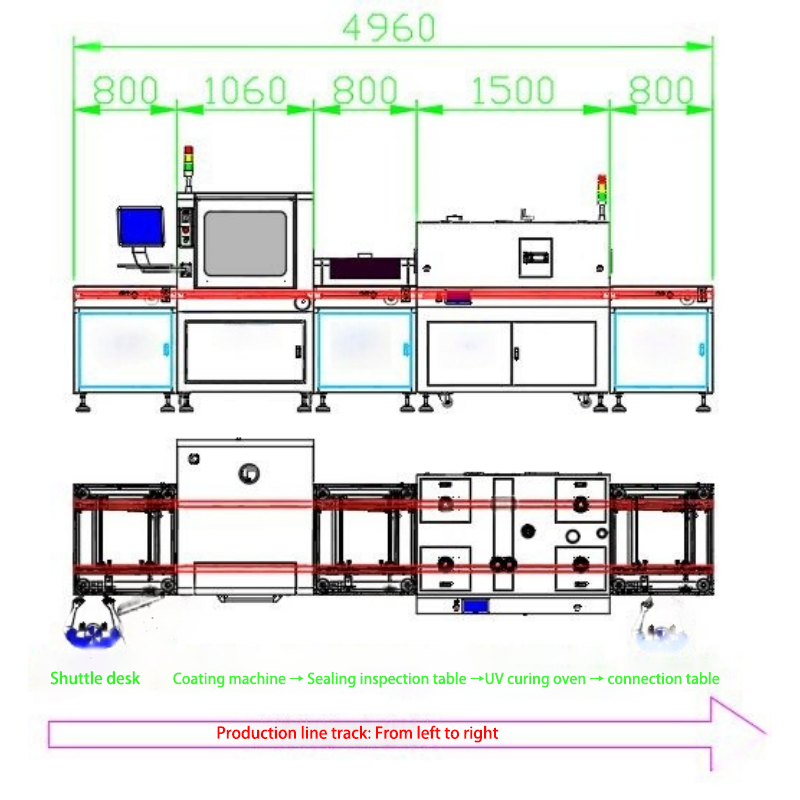

Totally Conformal Coating Line integrates selective coater (TY-Vision6a), UV curing oven (TY-UV1T) and transfer desks. With SMEMA integration, ±0.02mm precision, and automated coating-curing-detection, it ensures consistent PCB protection and efficient production.

Send email to us

Product Detail

Product Tags

Feature

1. Realize automated production to ensure the consistency of product quality;

2. Improve the coating quality greatly;

3. Reduce production cost, save paint, no spraying and waste;

4. Improve production efficiency, precision coating and curing in one breath;

5. Greatly improve the workshop environment, no pollution, no waste gas;

Detail Image

Specifications

Item	Name and Specifications	quantity	remarks
1	Selective Coating Machine (TY-Vision6a)	1 unit	1) Triple-axis high-end configuration with servo motor and precision screw module drive; 2) Equipped with two precision TY-A50 atomization valves, with adjustable spacing; 3) Rail electric widening;
2	UV curing oven (TY-UV1T)	1 unit	1) PLC + touch screen control; 2) A 6KW UV frequency conversion light source (Group 1) is positioned above the track; 3) Rail electric widening;
3	Transfer Desk (TY-C80)	2 units	1) 0.8m, entry and retraction plate; 2) With SMEMA signal control; 3) Embedded board control;
4	Sealed Junction Platform (TY-C81)	1 unit	1) 0.8m, with fluorescent detection, buffer flow, and manual detection; 2) With SMEMA signal control; 3) Embedded board control;
