Feature
1.40×40mm square bracket with M16mm adjustable load-bearing feet and universal pulley at the base, and 1.5mm iron plate sealing the periphery;
2.A stepper motor with a 10:1 reduction gearbox;
3.Two temperature zones, each containing six light tubes;
4.Special aluminum alloy guide rails, all stainless steel chains, and a dedicated automatic amplitude adjustment mechanism;
5.The device features an open-top design, with the outer shell fabricated from 1.5mm steel sheet through cutting and folding, and the inner liner constructed from 1.5mm cold-rolled sheet.
6.An independently controlled electrical box, equipped with overload protection devices and a temperature controller.
7.Electrostatic spraying (computer-generated white color).

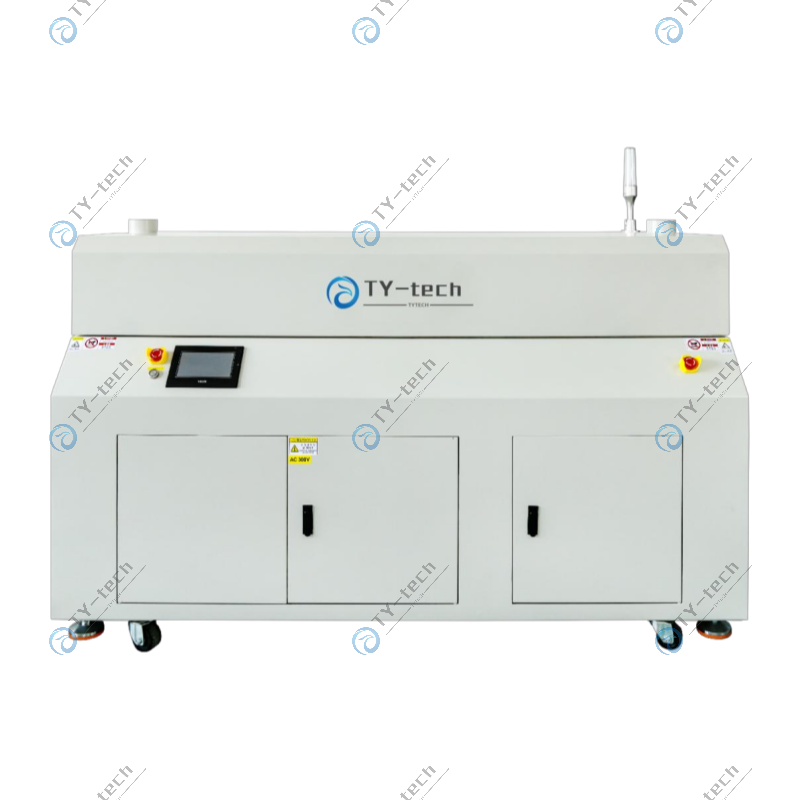

Detail Image
Specifications
|
type
|
specifications
|
TY-Cure200T
|
| delivery system | Career direction |
L→R/R→L
|
|
delivery head
|
910±20mm
|
|
|
mode of delivery
|
Chain conveyor (35B5 mm extended
stainless steel chain)
|
|
| wider bandwidth mode |
Electrically Adjustable Track Width Structure with Built-in Anti-Deformation Strip
|
|
|
height of the component delivery
|
100mm above and 100mm below the chain
|
|
| size of product |
Supports L450mm×W460mm product
(including fixtures) through board
|
|
| transporting velocity |
0.5—3.5m/min
|
|
|
transmission motor
|
10-step motor
|
|
|
orbit amplitude modulation width
|
50—460mm
|
|
|
amplitude modulation
|
electrical amplitude modulation
|
|
|
orbit load
|
10kg/m uniform distribution
|
|
|
infrared heating system
|
Number of temperate zones
|
2 temperature zones; 6 tubes per zone
|
|
control method
|
PLC + touch screen control
|
|
|
Power of a single lamp tube
|
500W per strip
|
|
|
heating temperature
|
room temperature to 120℃
|
|
|
heating time
|
<10 minutes
|
|
|
Equipment and site requirements
|
outline dimension
|
L2000mm*W1080mm*H1250mm
|
|
weight of equipment
|
Approx.450kg
|
|
|
Exhaust air volume requirements
|
100m³/h, 2 air vents with φ100mm diameter
|
|
|
device power supply
|
AC380V 50—60Hz three-phase five-wire system
|
|
|
Total power consumption of the device
|
6.5kW
|
|
|
other
|
lid of pot
|
Electric lift, software interface control
|
|
communication port
|
Standard SMEMA interface
|
