Feature
1.PLC-based control with touchscreen interface, featuring independent thermostat alarm and dual over-temperature protection;
2.Stainless steel chain conveyor with adjustable width (50-460mm) and electric speed control via software interface;
3.Hand-cranked tube lifting mechanism with electric lift and cover-opening function;
4.The device is equipped with a 6kW mercury light source.
5.The device features an SMT industry-standard SMEMA interface for seamless signal integration with other equipment;
6.Electrostatic spraying (computer-generated white).

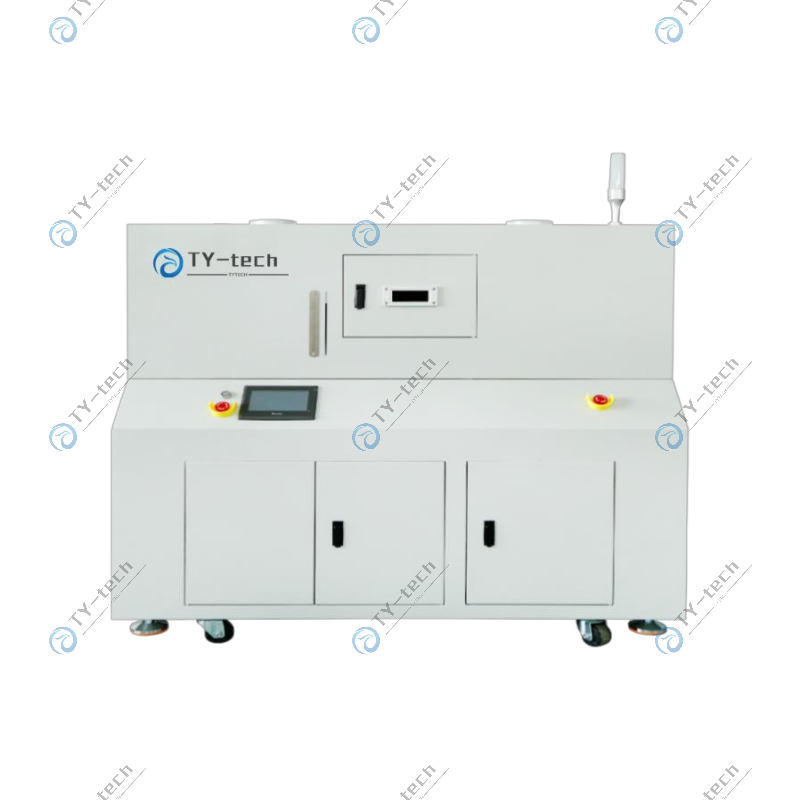

Detail Image
Specifications
|
type
|
Specifications
|
TY-UV1T
|
|
delivery
system
|
Career direction
|
L→R/R→L
|
|
delivery head
|
910±20mm
|
|
|
mode of delivery
|
35B stainless steel chain with 5mm long pin
|
|
|
height of the component delivery
|
100mm above and 100mm below the chain
|
|
|
size of product
|
W460mm product (including fixtures) passes the board inspection
|
|
|
transporting velocity
|
0.5—3.0m/min
|
|
|
transmission motor
|
stepper motor
|
|
|
AM width
|
50—460mm
|
|
|
amplitude modulation
|
Software Interface Control of Electric Amplitude Modulation
|
|
|
orbit load
|
8kg/m uniform distribution
|
|
|
UV irradiation
system
|
Number of UV light units
|
A 6kW mercury lamp light source
|
|
control method
|
PLC + touch screen control
|
|
|
power
|
6kW
|
|
|
UV lamp type
|
A 6kW mercury lamp light source
|
|
|
Equipment and
site requirements
|
outline dimension
|
L1500mm*W1080mm*H1650mm
|
|
weight of equipment
|
Approx.520kg
|
|
|
Exhaust air volume requirements
|
1200m³/h, φ150mm×2φ100mm×1 exhaust port diameter
|
|
|
device power supply
|
AC380V 50—60Hz three-phase five-wire system
|
|
|
Total power consumption of the device
|
7.0kW
|
|
|
other
|
lid of pot
|
Electric lift, software interface control
|
|
communication port
|
Standard SMEMA interface
|
