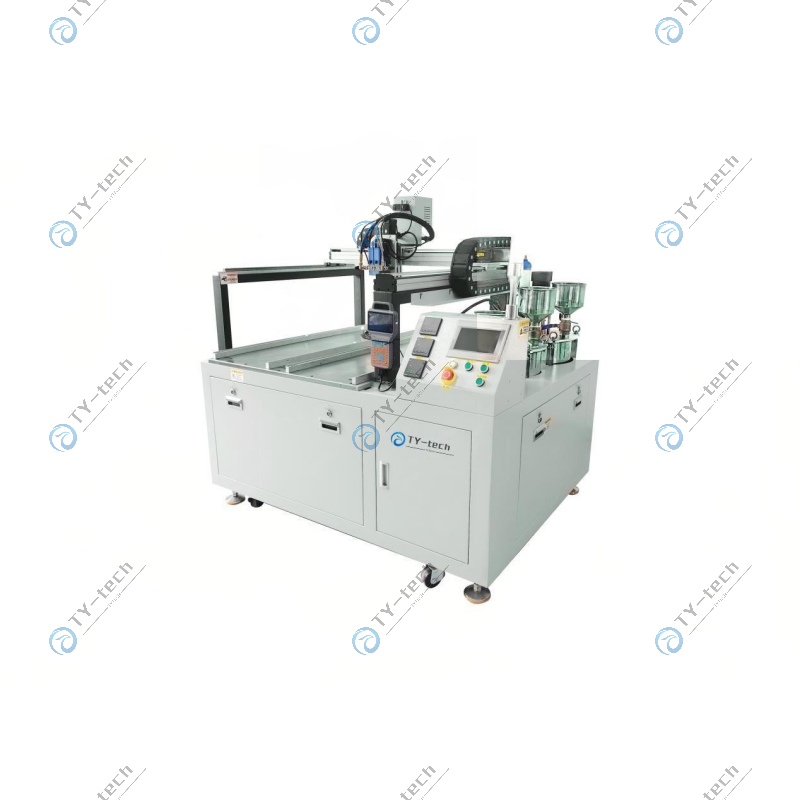

TY-Vision3A Offline Automatic Glue Filling Machine for Electronic Components

1.Accurate positioning, high precision and small running error;

2.Powerful electronic control system: using brand original motor, industrial computer, PLC, touch screen, electronic components, wiring, dustproof and anti-static system are designed according to national standards;

3.Adhesive dispensing specifications: The system employs self-developed screw pumps and gear pumps, delivering a dispensing rate of up to 15g/sec.

4.Optional A/B material tank heating system with integrated mixing equipment to prevent sedimentation;

5.Easy cleaning: The machine uses a separate liquid and material dispensing system, with mixing only occurring at the glue outlet. After use, simply remove the mixing tube and either soak it in the cleaning solution or rinse it thoroughly.

6.Integrated glue mixing and filling system with instant preparation and fully automated operation;

7.The amount, thickness, coating speed, dispensing time and stopping time of the glue can be set as parameters, and the amount of glue is stable and no dripping;

8.The ratio is mixed on demand, and the glue is poured at the same time, so as to save the glue as much as possible;

9.Dual-barrel design with separate storage for adhesive A and B, ensuring no curing during prolonged storage.

10.The mixing ratio is adjustable from 1:1 to 10:1, with either static or dynamic mixing modes to ensure thorough and uniform mixing.

11.A proprietary control system unaffected by air pressure, preventing issues like uneven glue application, thread pulling, or bubble formation;

12.Multiple gluing modes can be freely selected and switched.
