Feature
1.Three-axis motion (X, Y, Z) enables precise selective spraying of circuit boards, avoiding coated areas like connectors.
2.Accurately achieve selective area spraying on various circuit boards.
3.It can realize multi-track spraying such as dot spraying, line spraying and curve spraying, and can complete the spraying process of high-density complex circuit board.
4.It can effectively and evenly coat the edge of the device and eliminate the shadow effect of spraying.
5.The system accuracy is ±0.02 mm.
6.With high speed, high reliability and high stability of transmission and control system.
7.The equipment is equipped with two precision TY-A50 atomization valves with adjustable spacing (available in multiple valve configurations, with customized solutions based on customer requirements), enabling high-density complex circuit board coating processes.
8.Programming method: The software program supports manual teaching programming for data input.
9.Full-line integration: The device features an SMT industry-standard SMEMA interface, enabling seamless signal connection with other equipment.

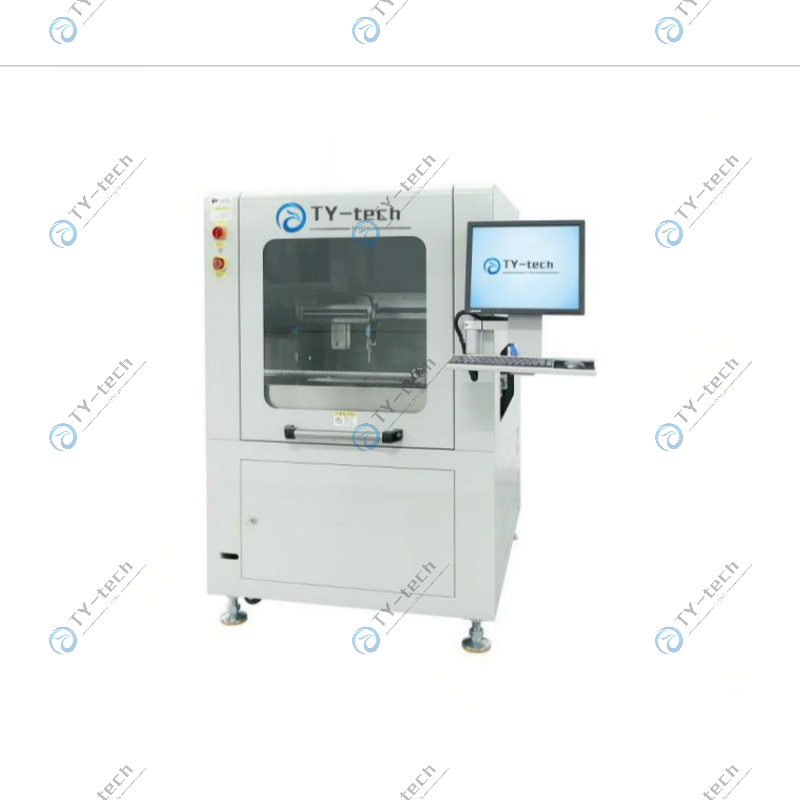

Detail Image
Specifications
|
type
|
specifications
|
TY-Vision6
|
| Coating
Parameters |
Spray stroke |
X=450mm
|
|
Y=450mm
|
||
|
Z=100mm
|
||
|
Maximum component height
|
100mm above and 100mm below the chain
|
|
|
PCB edge space
|
≥3mm
|
|
|
X.Y axis drive mode
|
Servo motor + precision screw module
|
|
|
Maximum operating speed of X and Y axes
|
1000mm/s
|
|
|
Maximum X-axis speed
|
300mm/s
|
|
|
X.Y.Z Repeat accuracy
|
±0.02mm
|
|
| delivery
system |
Work Direction |
L→R/R→L
|
| delivery head |
910±20mm
|
|
| transporting velocity | 2-13m/min | |
|
Transfer motor
|
Dual-step motor, computer interface displays speed value | |
| Track AM mode |
Smart Auto-AM
|
|
| Adjust width |
50-450mm
|
|
| Spray
Configuration System |
Valve layout |
2 precision atomizing valves TY-A50 with adjustable spacing (available in multiple valve body configurations, with customized solutions tailored to customer requirements)
|
| Soak and spit |
Set automatic soaking and spit frequency and duration
|
|
| Aerosol pressure adjustment |
Precision pressure regulating valve + digital display meter
|
|
| waste liquor treatment |
Configure waste liquid recovery device
|
|
| Sputter inspection |
LED, UV fluorescent detection lamp
|
|
| feed system |
10L pressure-fed glue tank + 2L stainless steel cleaning tank
|
|
| Equipment
and venue requirements |
outline dimension
|
L1060mm*W1300mm*H1700mm
|
|
weight of equipment
|
Approx.650Kg
|
|
|
Device pressure
|
≥0.4Mpa
|
|
|
Exhaust air volume requirements
|
900m³/h, exhaust duct diameter φ150mm*1
|
|
|
device power supply
|
AC220V 50-60Hz
|
|
|
Total device power consumption
|
1.8KW
|
|
| Control and
operating system |
control method
|
Industrial computer + motion control card
|
|
Coating Software
|
TY Control Software + Windows10 System Control
|
|
|
Programming method
|
Tutorial/Mouse/Keyboard Shield, manual parameter editing
|
|
|
communication port
|
Standard SMA interface
|
|
|
MES integration (optional)
|
The device can connect to the customer's MES system to enable Industry 4.0 smart
manufacturing.
|
