Feature
Feature:

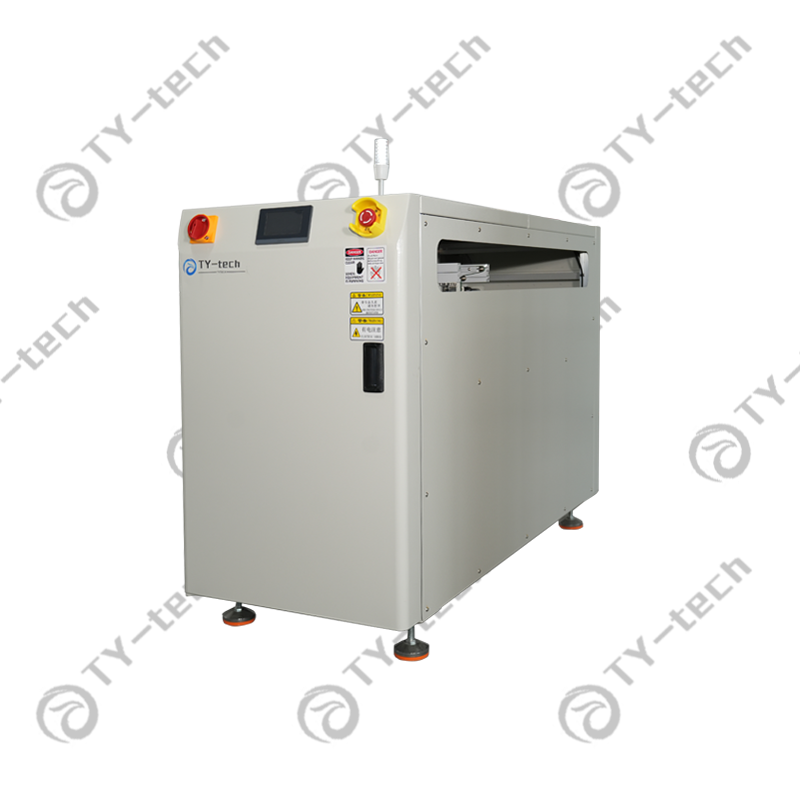

1. PCB shuttle conveyor is used to combine 2 SMT line to 1 SMT line or separate 1 SMT line into 2 SMT lines.
2. Panasonic PLC control.
3. MCGS touch screen with English/ Chinese interface.
4. Standard SMEMA communicate.
5. High accuracy step motor.
6. Closed type for high security.
7. Automatic width adjustment in touch screen.
Detail Image
Specifications
|
Model |
TY-SC350 |
TY-SC460 |
|
Power supply |
AC 220V/110V 50/60Hz |
|
|
PCB size (mm) |
400*50~350 |
460*50~460 |
|
Direction |
Left to right or right to left |
|
|
Trick fixed side |
Front side or back side |
|
|
Transport height |
900 ± 20 mm |
|
|
Main motor power |
250 W |
|
|
Machine dimension |
600*1500*1050mm |
600*1500*1050mm |
|
Weight |
140kg |
200kg |
-
