Wave Soldering Insertion Production Line 2.4M

Short Description:

Dimensions: 240*60*180cm

PCB width: 50-300mm

Conveyor speed: 0.2-2m/min

Product description: Automatic 2.4 Meter dip insertion line, it can be customized the size according to your requirement.

  • Brand: TYtech
  • Drive power:: 60W AC220V/1phase/50HZ60
  • Speed: Conveyor speed control by motor
  • Lead time: 5-7 working days
  • Warranty: 1 year
  • Product Detail

    Product Tags

    Automatic Insert line conveyor 2.4m/3.0m

    insert line

    Automatic Insert Line Features:

    1、this machine is used for the PCB board plug-in components for the assembly, it is used in front of wave soldering machine;

    2、we can add tracheal tube, gas tube and other equipments;

    3、this machine is made of aluminum which sized in 40*40mm.

    4、the chain conveyor is smooth and reliable.

    5、we can handle the speed by stepless frequency.

    Technical parameters:

    PCB size: 50-350mm

    Speed: 0.2-2m/min

    Drive power: 60W AC220V/1phase/50HZ60

    Conveyor speed control by motor

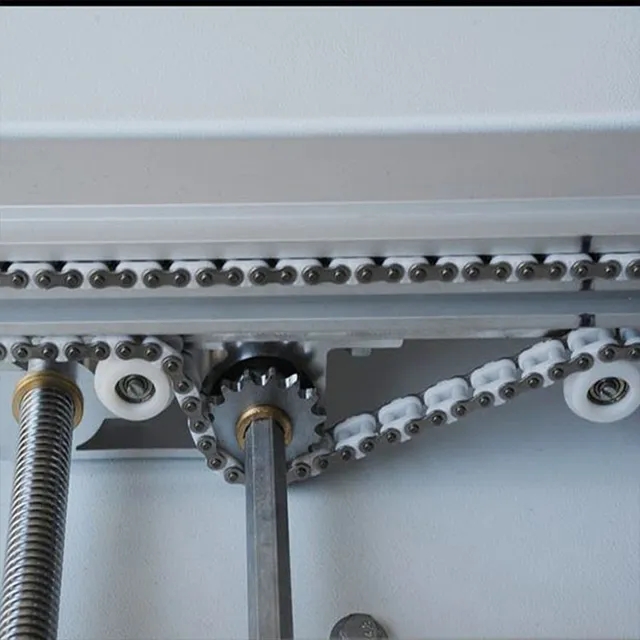

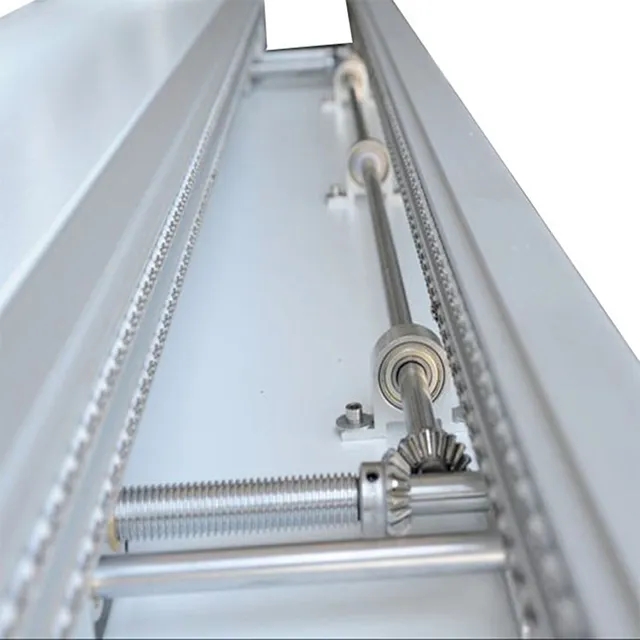

    detail details

    Packaging and delivery:

    delivery and package

    Keywords:  DIP Insert Line, PCB conveyor, smt conveyor, smt handling machine, pcb loader, pcb unloader, smt machine, smt peripheral equipment

    TYtech can also provide full smt and dip line including reflow oven, wave soldeirng machine, pick and place machine, solder paste printer, AOI/SPI, smt handling machine, smt peripheral equipment, cleansing machine etc. Any requirement please feel free to contact us.
