SMT Small Oven Lead Free 4 Heating Zones Reflow Soldring Machine TYtech 400
Features:
1. Up and bottom both with 4 heating zones.
2. Length of heating zones is 1400mm.
Details images:

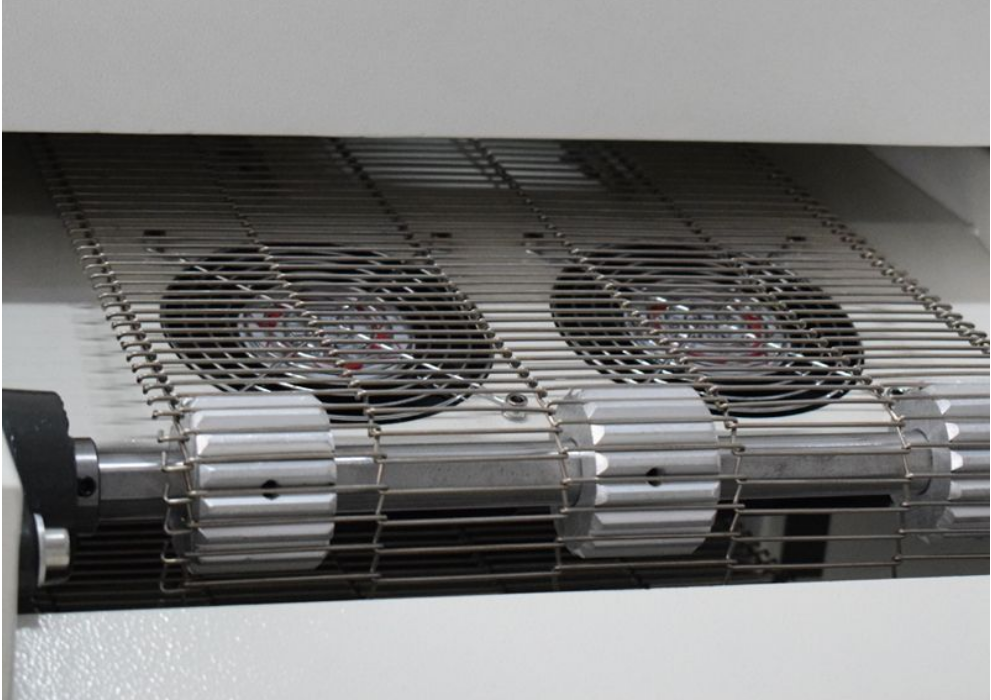

Cooling fan:

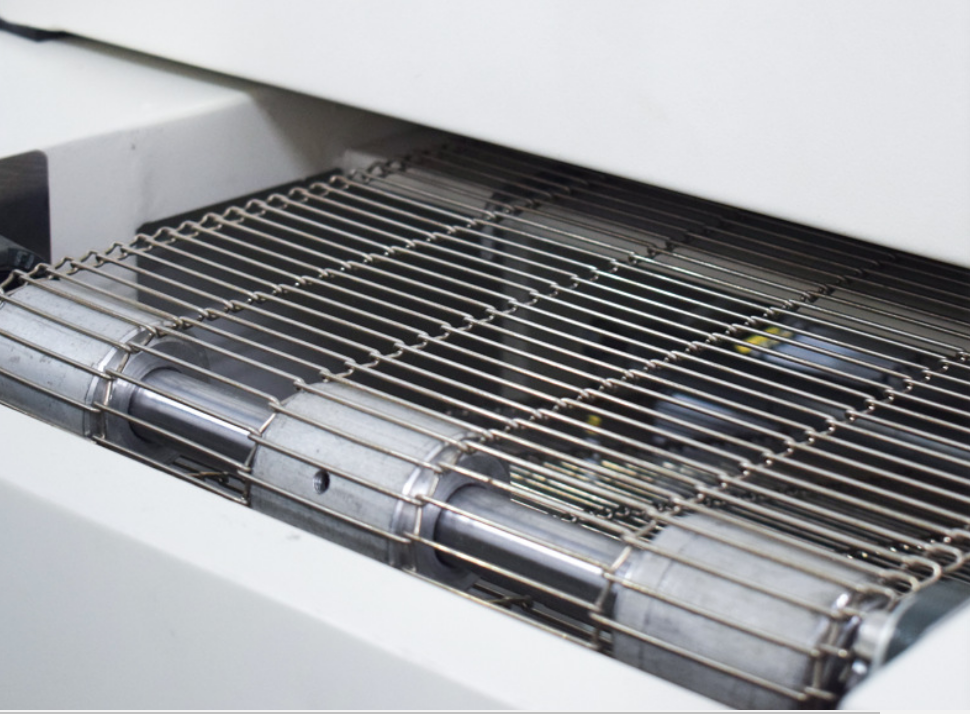

mesh belt

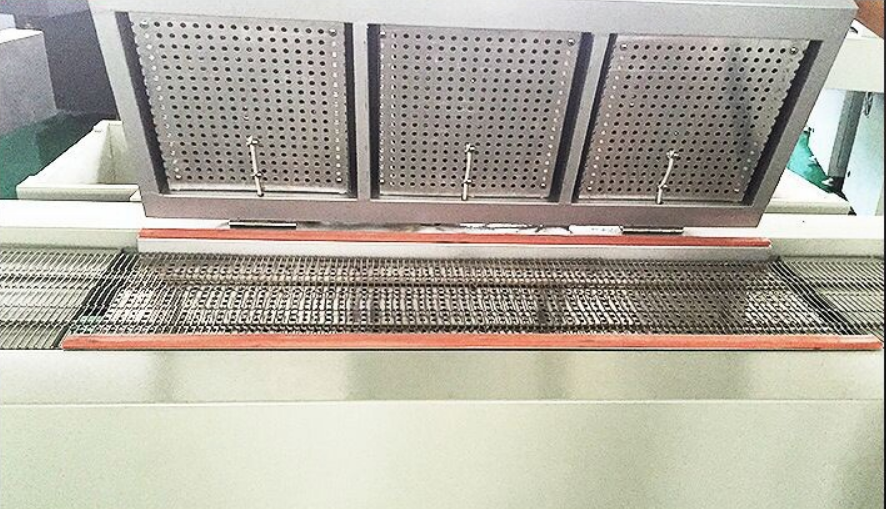

Heating length 1400mm
easy to operate button control panel
Specification:
| Model |
TYtech 400 |
|
|
Heating System |
Number of heating zones | UP 4/BOTTOM4 |
| Length of heating zones | 1400MM | |
| Heating mode | Up:hot air; bottom: IR | |
| Cooling Mode | Force air | |
|
Conveyor System |
Max. Width of PCB | 400mm |
| Mesh belt width | 400mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 880±20mm | |
| Transmission type | Mesh | |
| Conveyor speed | 0-1000mm/min | |
| Fixed rail side | Front rail fixed(option:rear rail fixed) | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 10kw | |
| Starting power | 10kw | |
| Normal power consumption | 4KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage
(80 GB)(machine with PC) |
|
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:yellow-warming, Green-normal, Red-abnormal | |
|
General |
Dimension(L*W*H) | 2500×700×1320mm |
| Weight | 350KG | |
| Color | Computer gray | |
Keywords: Reflow oven, smt reflow oven, reflow soldering machine, pcb welding machine, pcb machine, smt reflow soldering machine, LED reflow oven, pcb reflow oven, China reflow oven, smt machine.
TYtech automation can also provide full smt equipment including wave soldering machine, pick and place machine, solder paste printer, smt handling machine, AOI/SPI, smt peripheral equipment, smt spare parts etc, any requirement please contact us by call, wechat, whatsapp: 008615361670575, email: frank@tytech-smt.com.
FAQ:
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: How can i place order with you?
A: You can reach us by email, whatsapp, wechat and confirmt he final price, shipping method and payment term, then we will send you a proforma invoice with our bank details.
