Feature
• Central smoking exhaust system
• Real-time temperature monitor
• Customized Multi-feed solder wire module
• Module design for quick easy maintenance
• Anti-collision to avoid product damaged
• 1D/2D barcode scanned via CCD
• User Management:2 levels
• User friendly and easy-to-use programming
• CCD Panorama scan
• MelwayCCD Vision locate system
• Live soldering display
• Customized MES system(Purchase separately)
• Customized 600w High-Frequency temperature controller
• Optional: XYZR calibration assembled with CAL-100 calibrator
Detail Image
Specifications
|

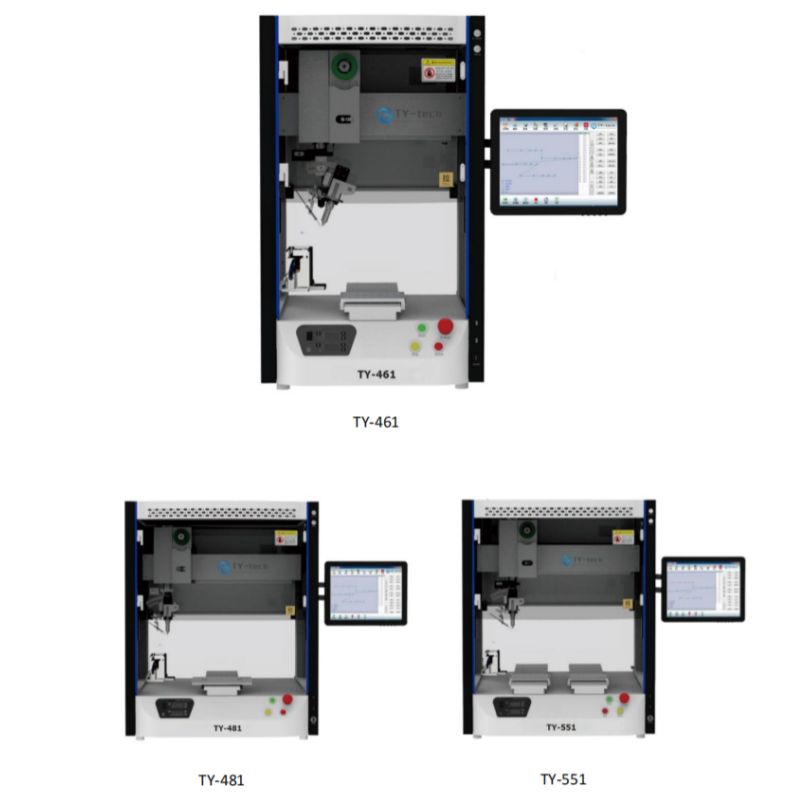

Desktop soldering machine
|
TY-461
|
TY-481
|
TY-551
|
|
|
Dimension
|
575*620*965mm
|
775*745*965mm
|
775*745*965mm
|
|
|
Travel Range(X*Y*Z*R)
|
300*300*100mm*360° |
500*500*100mm*360°
|
500*500*100mm*360° | |
| Product Max.Size | 230*300mm |
430*500mm
|
210*500/210*500mm
|
|
| Control Method |
Miniature industrial PC (IPC)
|
|||
| Drive Mode | Step Motor | |||
| (Axis)Number of Axis |
4(X/Y/Z/R)
|
4(X/Y/Z/R)
|
5(X/Y1/Y2/Z/R)
|
|
| Static Temperature |
±1℃
|
|||
| 20oW/600W Temperature Range |
50-500/250-500℃
|
|||
| Maximum Load |
12kg(Standard)
20kg(Optional)
|
|||
| Max Move Speed |
650mm/s
|
|||
| Repeat Position Accuracy |
±0.02mm
|
|||
| Solder Wire Diameter | Breaking Tin:(0.6-2.0)
Feeding Tin:(0.3-2.0)
|
|||
| Average Power Consumption |
220V/550W
|
220V/550W |
220V/700W
|
|
| Power | 400W heating element: 580W
200W heating element: 480W
|
400W heating element: 510W
200W heating element: 410W
|
400W heating element: 570W
200W heating element: 470W
|
|
| Total weight | 110KG |
115KG
|
123KG
|
|
| Optional Items |
