Specification:
| Model No | TYtech T200 |
| Number of heating zones | 1 |
| Length of heating zones | 500mm |
| Body size | 1400*1200*1600 |
| Outside dimension | 2100*1200*1600 |
| Weight | 500KG |
| Component lead | Within 10 mm |
| Total/running power | 9KW/3-5KW |
| Air supply | 0.5MPa |
| Preheating method | IR(standard) |
| Preheating power | 220V 5KW |
| Control method | Press key +PLC（Option: touch screen, PC） |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 180KG |
| Solder pot temperature | 300ºC |
| Solder power | 380V 6KW |
| Solder temp. control method | PID&SSR |
| Wave crest drive power | 500W 220V |
| Warm-up time of solder | About 120mins for setting 250ºC |
| PCB width | 200mm |
| Convey speed | 300-1800mm/min |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-7 º |
| Flux pressure | 3-5 bar |
| Flux capacity | 3.2L |
Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
11.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
Packaing and delivery:
Lead time: 10-20 working days.
Keywords: Wave soldering machine, smt wave soldering machine, smt machine, smt equipment, smt soldering machine, pcb welding machine, wave solder, wave soldering. Mini wave solder, dip wave solder equipment, smd wave soldering, THT wave soldering, Lead free wave solder machine, pcb welding machine.

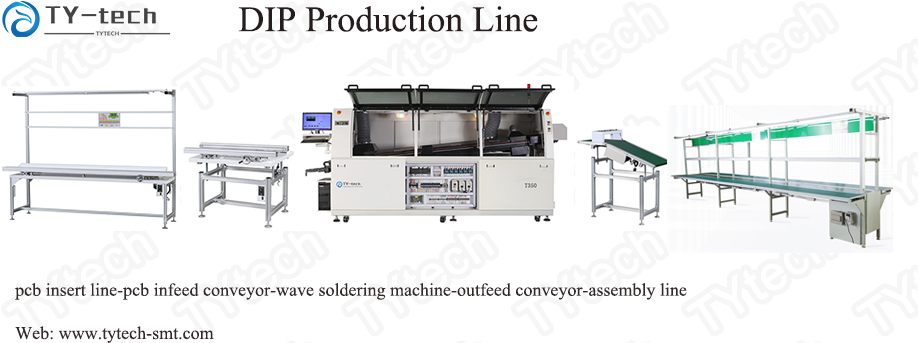

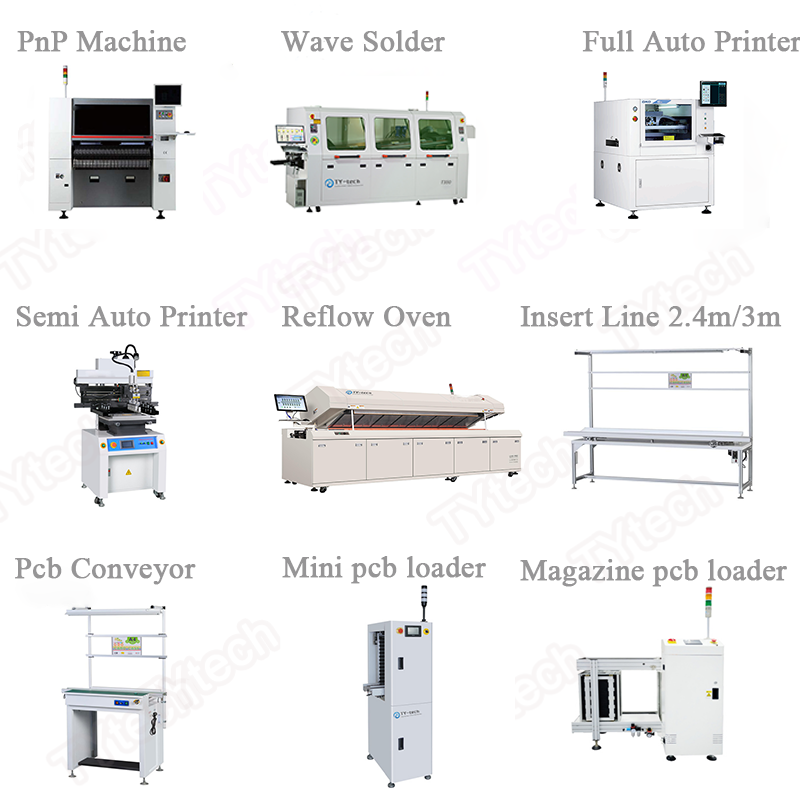

TYtech is a company to manufacture smt/dip production line, including reflow oven, wave soldering machine, pick and place machine,smt stencil printer, AOI/SPI, smt handling machine, smt peripheral equipment etc. For more details please feel free to contact us by wechat/whatsapp: 0015361670575, email: frank@tytech-smt.com.
FAQ:
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: How can i place order with you?
A: You can reach us by email, whatsapp, wechat and confirmt he final price, shipping method and payment term, then we will send you a proforma invoice with our bank details to pay.
