Feature
Unmatched Inspection Speed with Guaranteed Best Accuracy
The KY8030-3 blends Koh Young’s pioneering technologies with an inspection speed of 91.2cm
2 /sec. The combination of this system’s throughput and accuracy makes the KY8030-3 suitable across a vast range of applications. The latest options makes this system twice as fast as its predecessor with guaranteed measurement accuracy.
Active Warp Compensation
▪ Z-tracking 3D compensation
The unique Koh Young warp compensation technology actively calculates and detects any substrate warpage. Using its exclusive 3D imaging and algorithms , Koh Young considers multiple elements like
slope, stretch, twist, bow, and shrinkage to guarantee an accurate measurement and to meet the ultimate inspection system criteria.
▪ Pad-referencing 2D compensation (optional)
Real-time, automatic reference teaching uses IR lighting to compensate for non-linear inspection challenges by analyzing the PCB pad locations against the ideal PCB stencil design defined in the CAD file.
Automated Solder Paste Dispensing: Auto-Rework
KY8030-3 dispenses solder paste automatically as an optional add-on solution. The high-precision and
user-friendly dispensing system helps eliminate costly mistakes due in large part to insufficient solder
in open joints, lean fillets, and weak joints. The automatic dispensing option reduces operational costs,
improves line efficiency, and strengthens profitability by eliminating board scrap and rework. Once Koh
Young’s SPI is configured with the Auto-Rework option, it becomes more than an inspection system.
It becomes a true process optimizer.

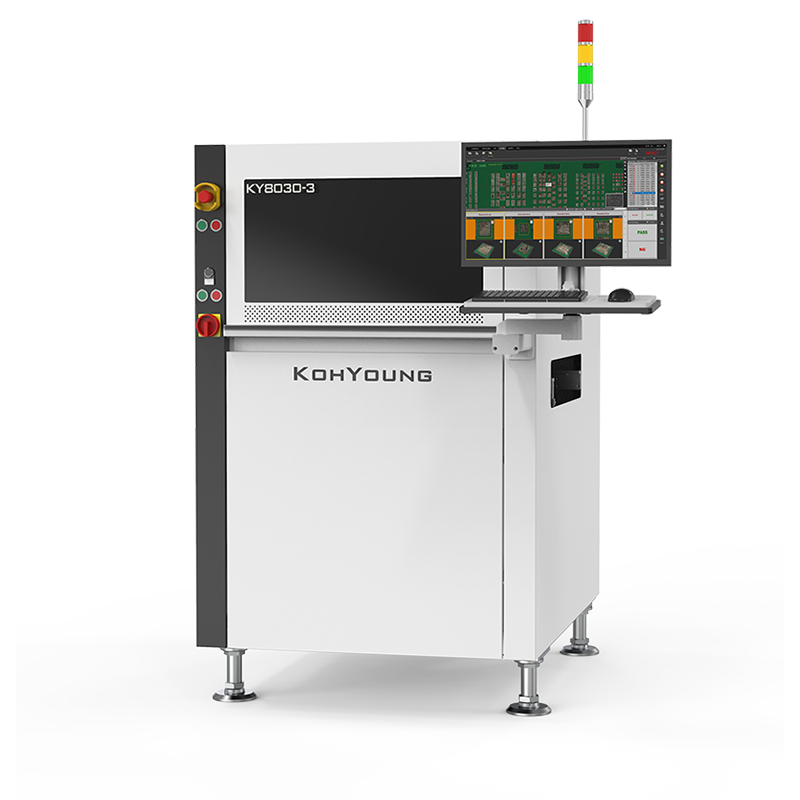

Detail Image

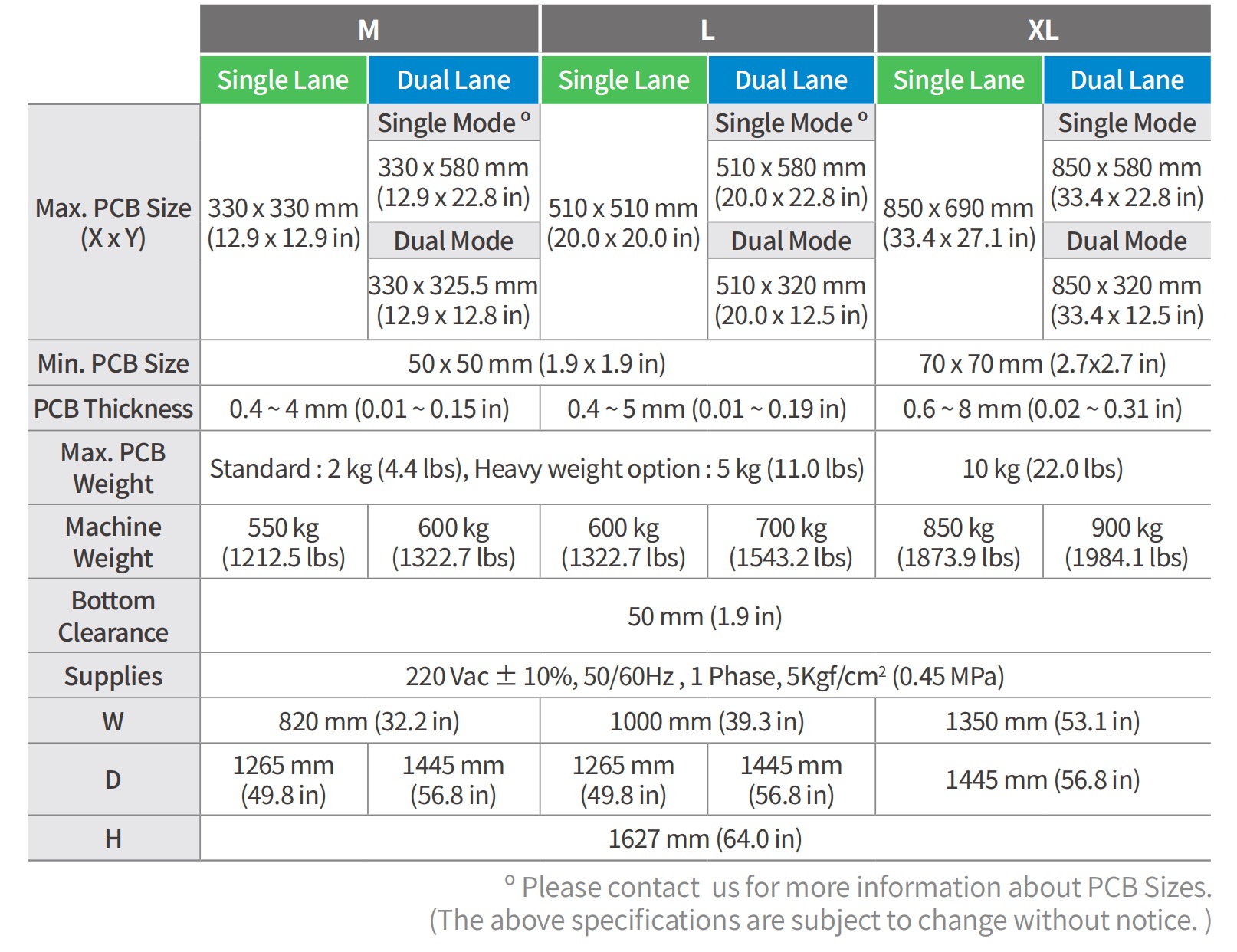

Specifications
