Feature
1.Comprehensive Cleaning System: Thoroughly and effectively cleans residual organic and inorganic substances from product surfaces.
2.Fully Automatic Cleaning Mode: Completes all cleaning and rinsing processes within a single, compact chamber.
3.Large Cleaning Capacity: 610mm (L) * 560mm (W) * 100mm (H), accommodating larger product sizes and higher cleaning capacity.
4.Optimal Nozzle Design: Employs a gradually increasing nozzle distribution to enhance cleaning efficiency; a staggered nozzle arrangement to completely eliminate cleaning blind spots.
5.Adjustable nozzle pressure design: Reduces the risk of collision and splashing caused by high-pressure spray on small-sized products during cleaning.
6.Standard heating system for dilution tank: Significantly improves cleaning efficiency and shortens cleaning time.
7.Large touchscreen interface: Utilizes a stable and reliable color touchscreen, allowing for the setting of different cleaning process parameters for different products, making operation simpler.
8.High cleanliness standards: Ion contamination fully meets IPC-610D Class III standards (below 1.56 μg/cm²) and US military standard MIL28809 Class I standards.

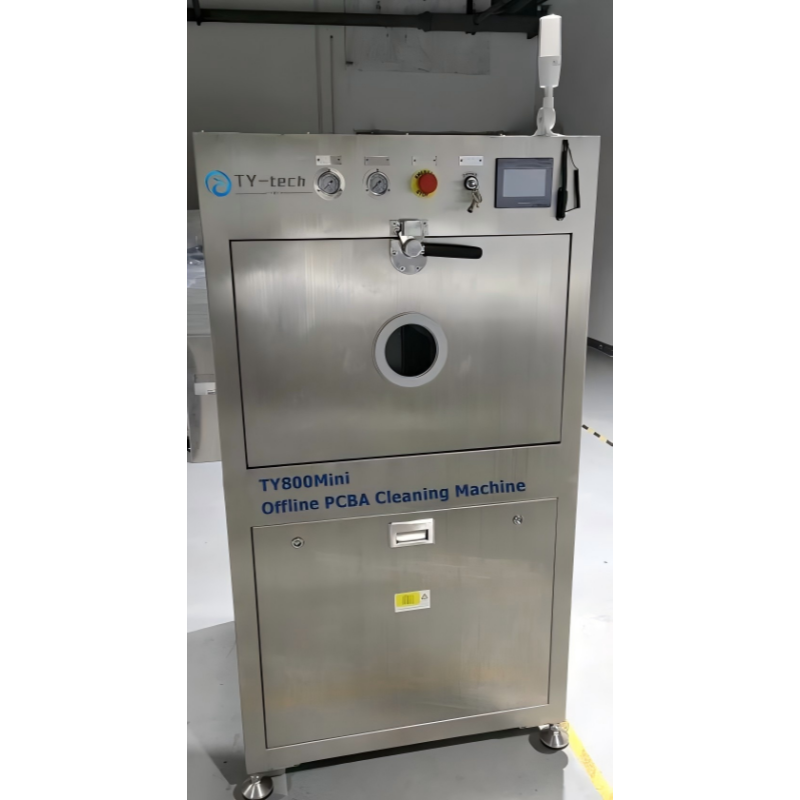

Detail Image
Specifications
| Model |
TY800Mini
|
|
External Dimensions
|
L930 × W850 × H1650 (mm)
|
| Cleaning Chamber Dimensions |
L690 x W620 x H515 (mm)
|
|
Cleaning Basket Specifications
|
L610 x W560 x H100 (mm)
|
| Dilution Tank Capacity | 40L |
| Spray Tank Capacity |
17L-23L
|
| Solvent Tank Heater Power |
9KW
|
|
Cleaning Method
|
360° Rotary Spray Cleaning
|
|
Cleaning Time
|
0-50 minutes (adjustable) |
|
Rinsing Time
|
1-99 minutes (adjustable)
|
| Number of Rinsings |
1-10 times (adjustable)
|
| Dilution Liquid Heating Temperature | Room temperature to 75℃ (adjustable) |
| Chemical Solution Recovery and Filtration |
0.22μm (Filters out small particles of contaminants such as solder paste, rosin, and flux)
|
| Inlet |
1-inch quick-connect connector
|
| Drain | 1-inch quick-connect connector |
| Dilution Liquid Drain |
1 Quick-connect interface
|
| Horizontal spray pump |
3kW
|
|
Exhaust port size
|
Φ76mm (W) × 40mm (H)
|
|
Power supply/air supply
|
AC380V 50HZ 65A / 0.45Mpa～0.7Mpa
|
| Total power |
12KW (Note: Only 3KW during cleaning operation)
|
|
Machine net weight
|
280Kg
|
